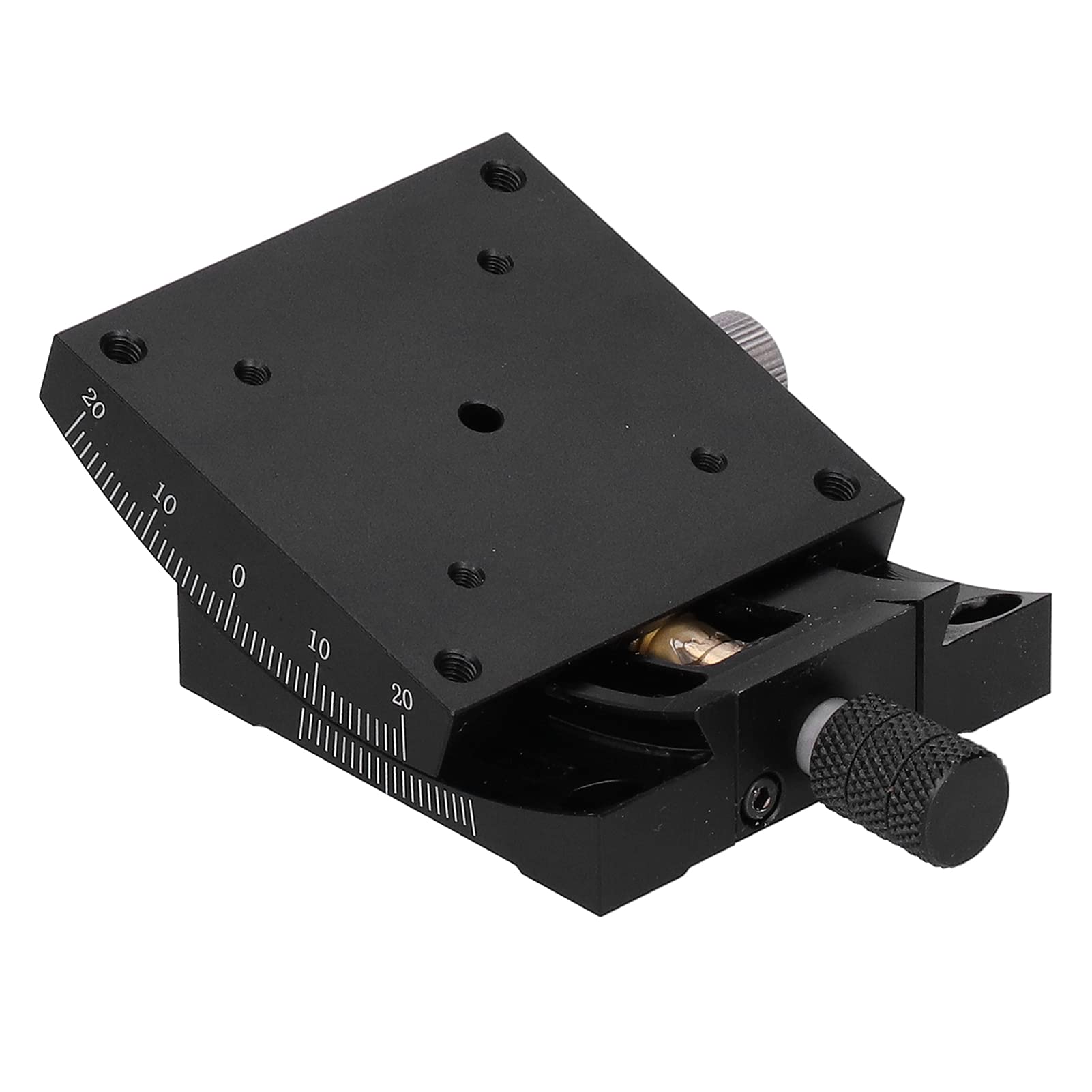

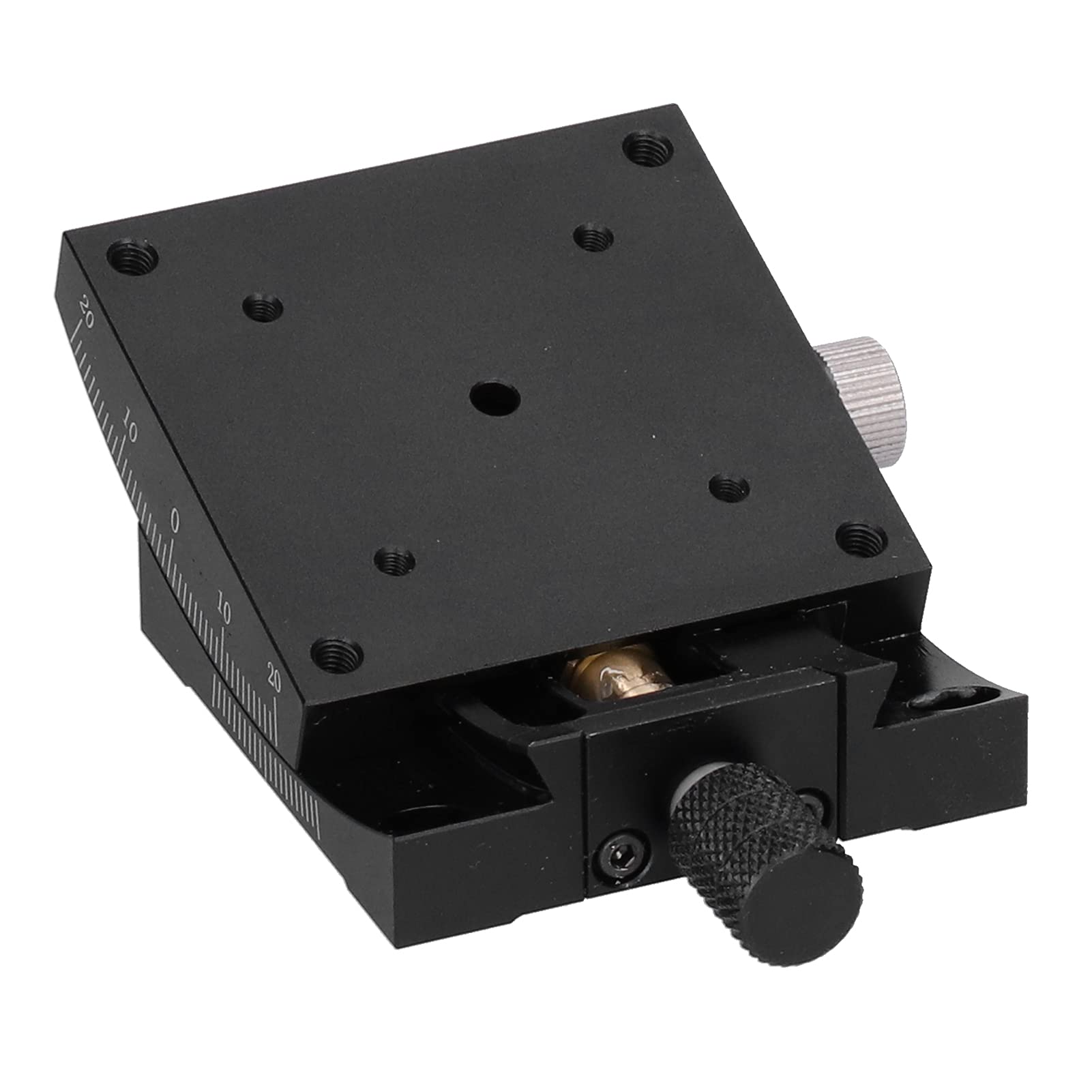

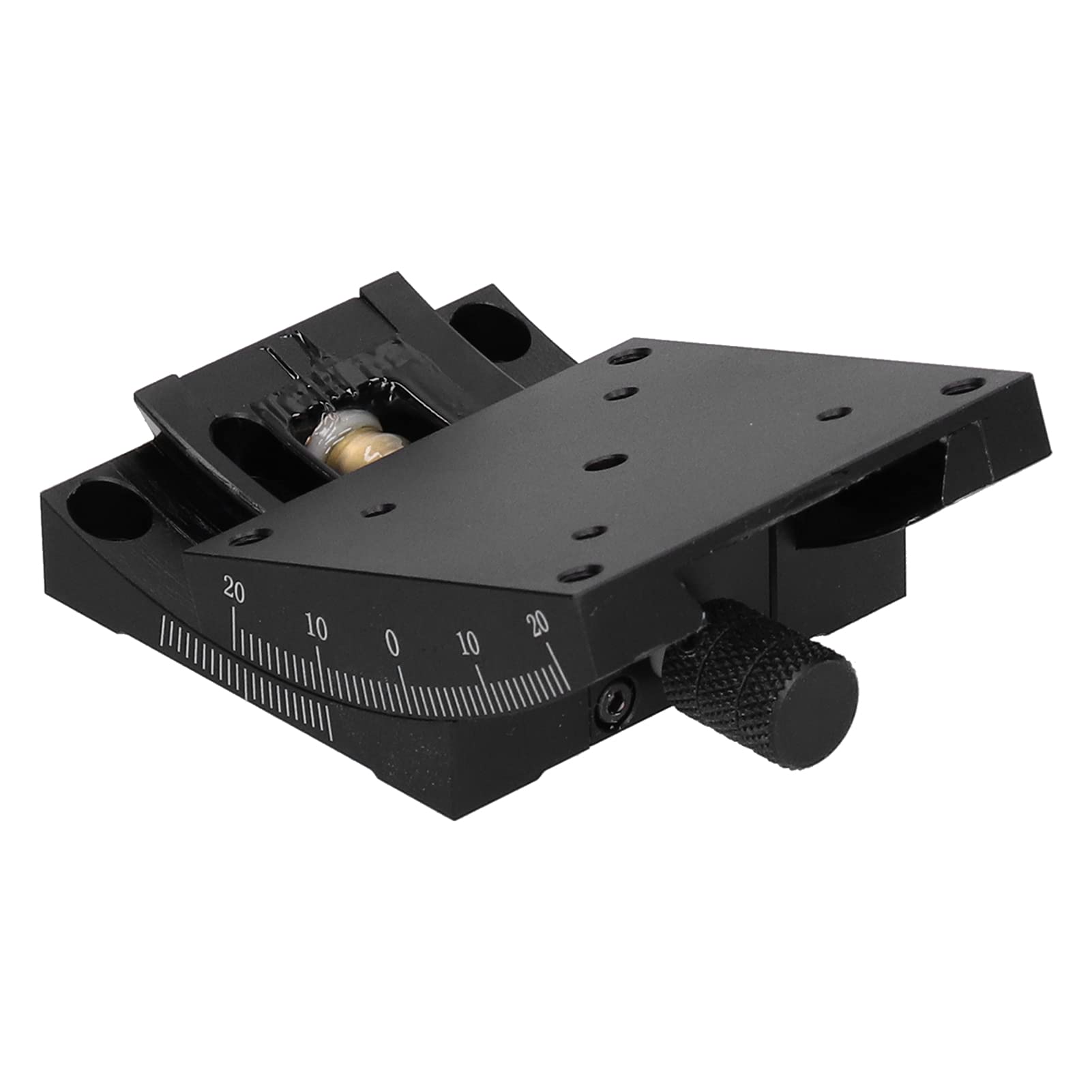

Fafeicy HXV-A60 Linear Stage with ±10° Angle & 20mm Stroke - for Precision Motor Alignment

Product Description

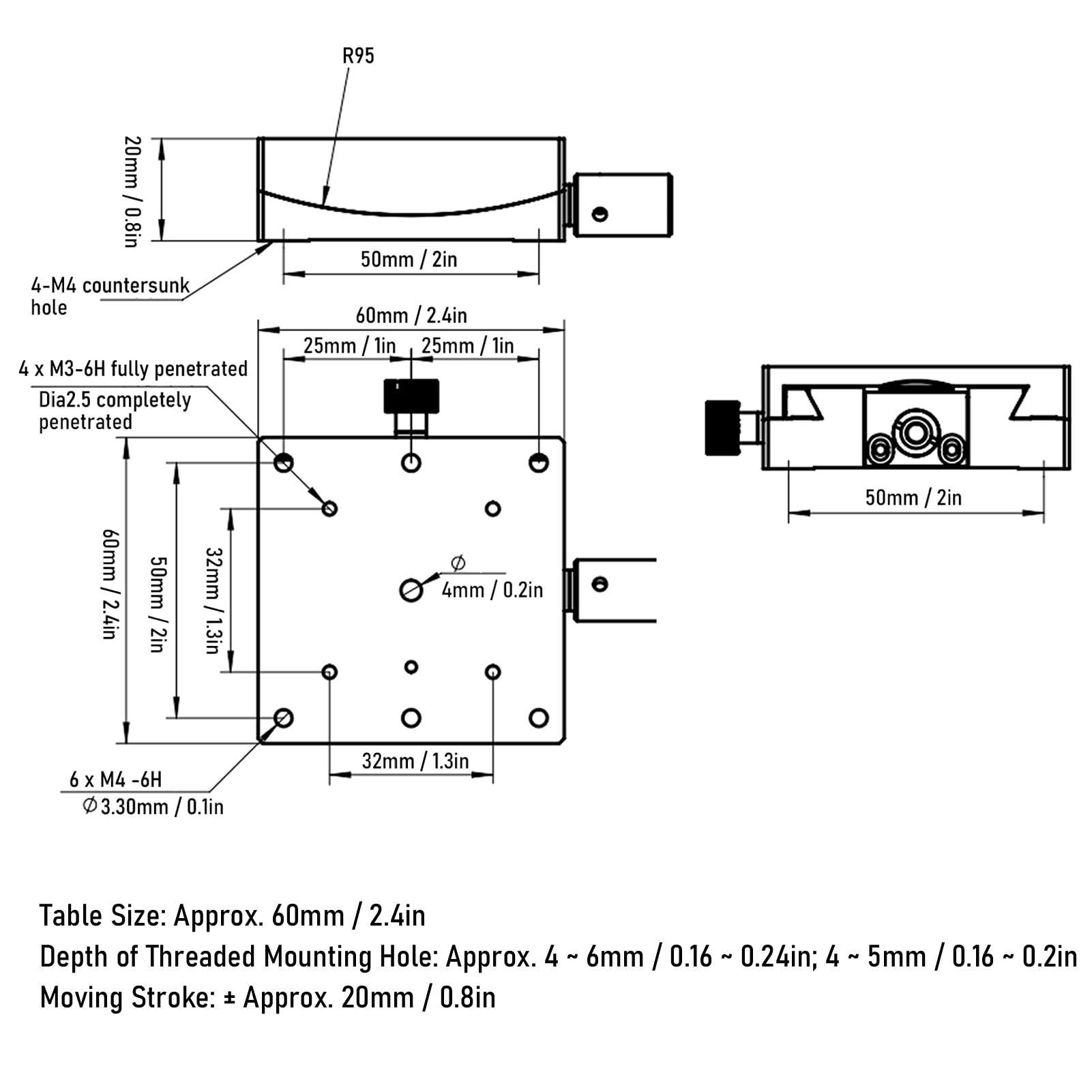

How to Use: 1. According to the process requirements of the processed parts, a power box (with multi‑axes box) drilling head, boring head, milling head, turning head, etc. can be installed on it to form various combined machine tools to complete drilling, expanding, reaming, dizzying, scraping, chamfering, turning, milling, and tapping, etc., and the grading feed mechanism on the sliding table can complete deep hole processing(grading feed mechanism is only used for specifications below HJ32). 2. Can be installed on the side base or column, and can also be installed on the inclined base to form a horizontal, vertical or inclined modular machine tool. Specification: Item Type: Linear Stage Model: HXV-A60 Material: Aluminum alloy Table Size: Approx. 60 x 60mm / 2.4 x 2.4in Moving Angle: ±10° Body Material: Aluminum alloy (black anodized) Drive Mode: Turbine worm Glide : Manual rotation of the worm gear (worm wheel + worm) Rail Type: Dovetail Number of Threaded Mounting Holes on the Countertop: 4+4 Threaded Mounting Hole Diameter: 4-M4mm; 4-M3mm Depth of Threaded Mounting Hole: Approx. 4 ~ 6mm / 0.16 ~ 0.24in; 4 ~ 5mm / 0.16 ~ 0.2in Vertical Load Resistance: 29.4N (3Kgf) Moving Stroke: ± Approx. 20mm / 0.8in Minimum Reading: 0.1° Straightness: 0.03mm Scope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, handling machines, processing machines, printing machines and others Package List: 1 x Linear Stage
